Setup Reactional

Add Reactional Manager and Settings​

To make integration as smooth as possible, we have prepared a menu item for quick insertion, which spawns a Reactional Manager GameObject in the scene called Reactional Music.

If you need to add it to your scene, you can find it under the Tools -> Reactional -> Add Reactional Manager. menu in the Unity toolbar along with

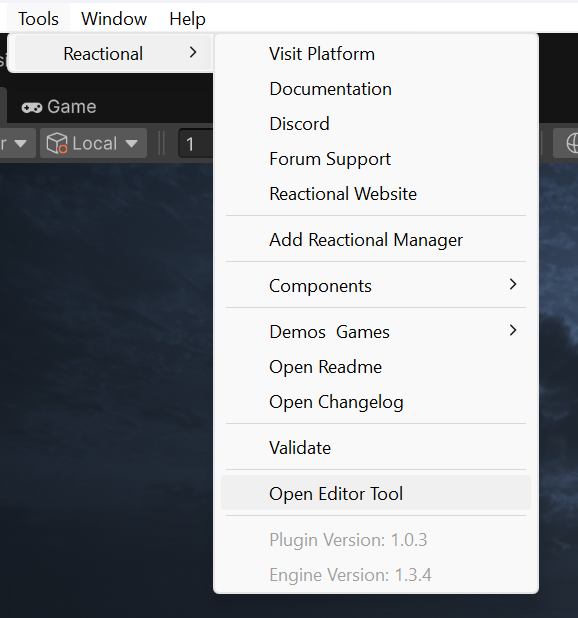

Reactional Toolbar​

The Reactional Toolbar provides quick access to key Reactional SDK interactions as well as Reactional Links, directly within the Unreal Editor. Find it via Tools -> Reactional:

ReactionalToolbar

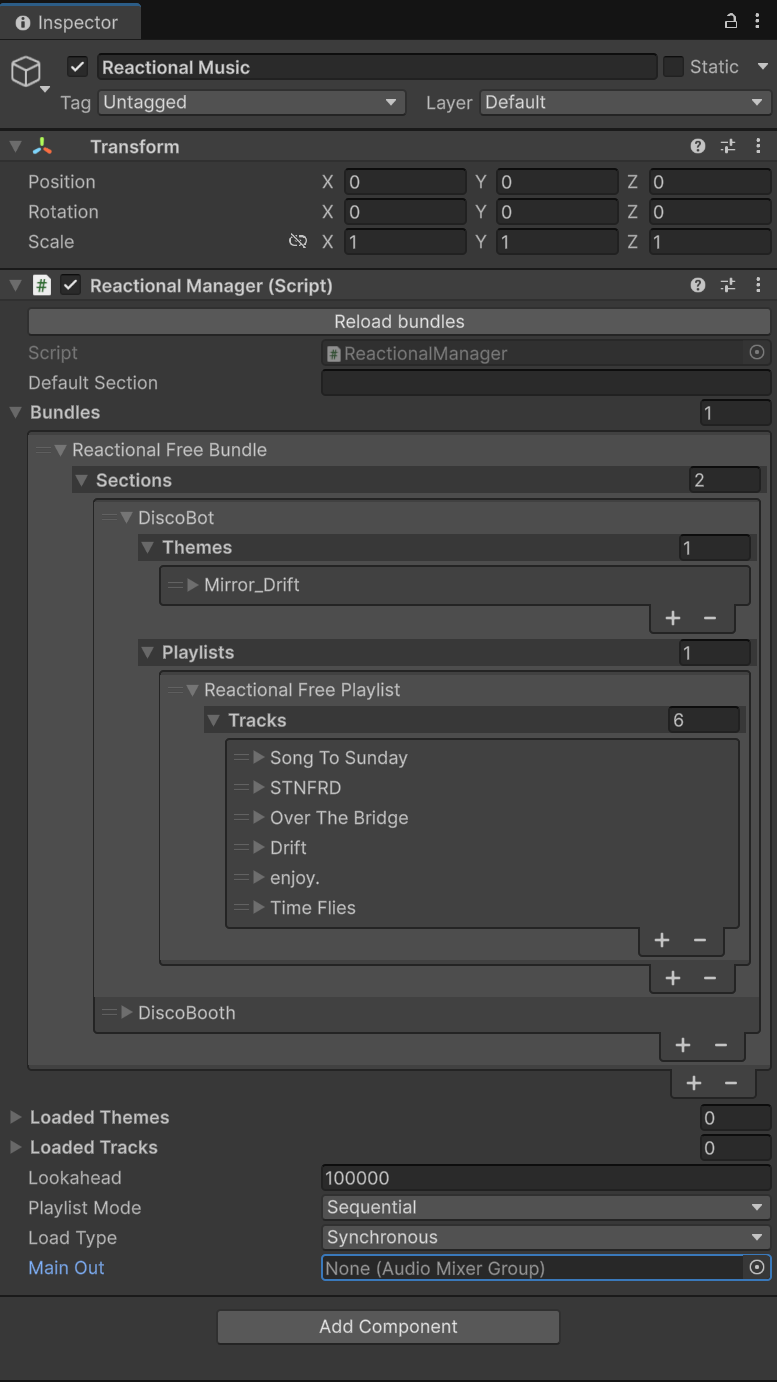

Reactional Manager​

The game object contains a child object called Reactional Engine
as well as a few scripts that are needed for Reactional playback.

  • Reactional Manager Singleton that handles the project setup and settings, which will then be passed to the Reactional Engine on load.
  • Basic Playback A barebones script which demonstrates a few API calls, such as loading tracks, assets, and starting playback. You are welcome to copy and rename this script to implement your own version of this, best pratice is to move the MyNewPlayback sctipt on to a spearate GameObject to make sure it wont disapeare on a plugin update.

BasicPlayback

Reload Bundle​

After you have added Content To Your Project
Your bundles that you have put in the Assets/Reactional/Bundles folder
are ready to get picked up by the Reactional Manager.
Make sure that you press Reload Bundle. Once that is done,the Reactional Manager will load in the Bundles with Trackand Themes.

Lookahead​

Lookahead in milliseconds, the higher the value the more accurate the timing of the playback will be.
However higer values will also add more latency to the audio output. Defaults to 10.000 ms

Playlist Mode​

How the playlist should be played. Sequential, Random, Repeat, Single

Load Type​

How the bundles should be loaded: Loads in Background loads the assets in the background. Synchronous loads the assets on the main thread.

Main Out​

Unitys AudioMixerGroup. The audio output will be routed to the selected group enabeling Unitys Mixer functionality.

ReactionalManager

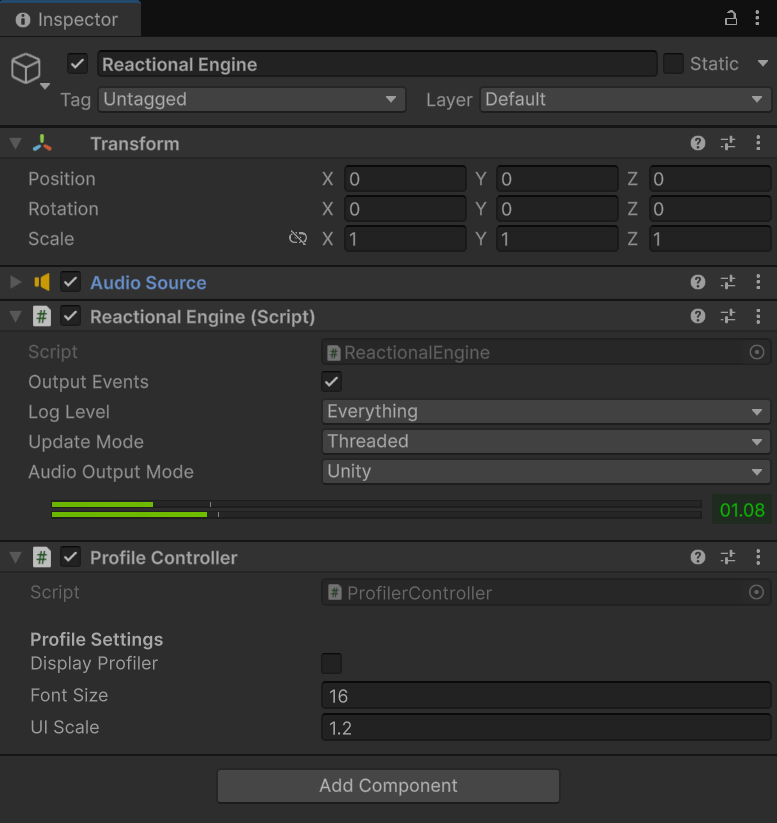

Reactional Engine Game Object​

The Game Object contains a few scripts that are needed for Reactional playback. The game object contains a child object called Reactional Engine
as well as a few scripts that are needed for Reactional playback.

  • AudioSource The above script pushes an audio buffer into the OnAudioFilterRead-function. ending up in this audio source
  • Reactional Engine A barebones singleton for the actual engine instance.
  • Profile Controller A script that handles the profile switching.

Output Events​

Controls whether the Reactional Engine should output OSC events such as: noteon, noteoff, bar, stinger, and other music system events. When enabled (true), these events can be subscribed to via delegates like onNoteOn, onNoteOff, onBarBeat, and stingerEvent. This is useful for synchronizing game events with the music (e.g., triggering visual effects on beats or handling note events).

Log Level​

Determines which types of log messages from the Reactional system are displayed in the Unity Console. Available options are:

  • Log - General information messages
  • Warning - Warning messages
  • Error - Error messages
  • Disabled - No logging

Multiple levels can be enabled simultaneously. The default setting includes Log, Warning, and Error.

Update Mode​

Defines how the Reactional Engine processes audio and updates. Available modes:

  • Threaded - Runs the engine update on a separate thread at ~60fps, reducing main thread overhead
  • Audio Thread - Updates are processed on Unity's audio thread during OnAudioFilterRead
  • Main - Updates run on the main Unity thread during the Update method

The default is Threaded for optimal performance.

Audio Output Mode​

Specifies how audio is rendered from the Reactional Engine:

  • Unity - Audio is rendered through Unity's OnAudioFilterRead method and routed to the AudioSource component ( default)
  • Custom Other modes may be available depending on platform requirements

Display Profiler​

Enables the Reactional Profiler system to track performance metrics such as memory management, audio rendering, event processing, and engine updates. Useful for debugging and optimization during development.

ReactionalManager

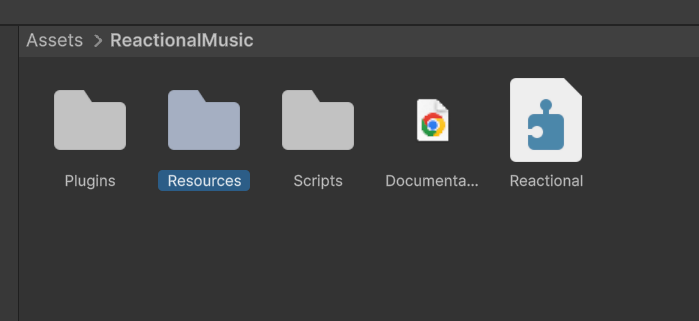

Plugin Assets​

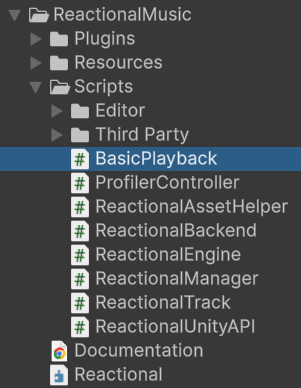

To use Reactional Music assets in your project you usually find them under Tools.
But you can also view them under Project tab, in the path Assets->ReactionalMusic.
Scripts PluginAssets

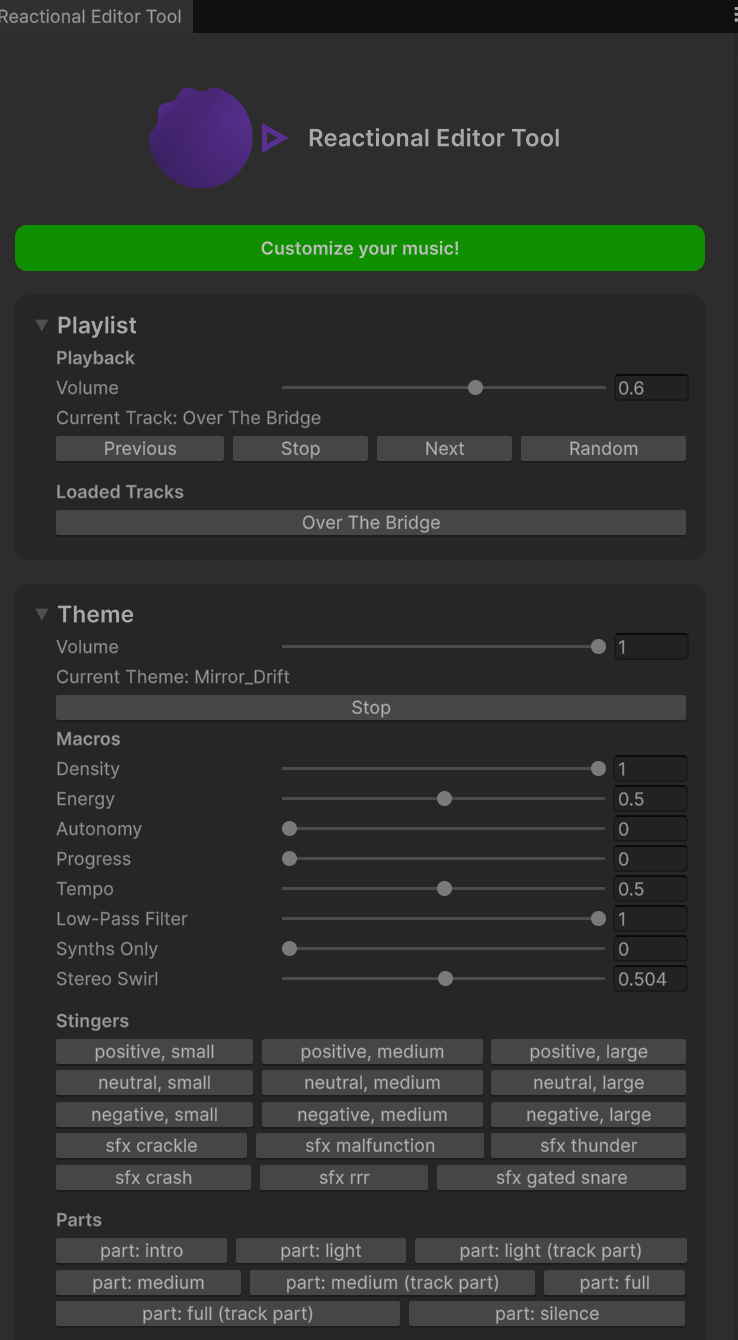

Editor Tool​

The Editor Tool can run in PIE and is designed to easily test imported Bundles.

Once the widget is open, and you are in playmode you can:​

  • Start and stop Playback
  • Visit the Platform via Customize Your Music button.
  • Test all Macros, Stingers, and Parts
  • Print all Controllers to the console to retrieve string variable names for all controls in the currently loaded theme

PluginAssets

Testing Multiple Themes in the Widget

Note: If you have multiple Themes loaded in the Reactional Manager in the Scene.
and want to test a different one, you must drag and drop your #Section and #Theme to be the top object in the Reactional Manager.
